Two power configurations are available, 3.5kw/7kw
Light and portable
carry-on
Line length customization
Reservation charging
Multiple protection
Color screen display

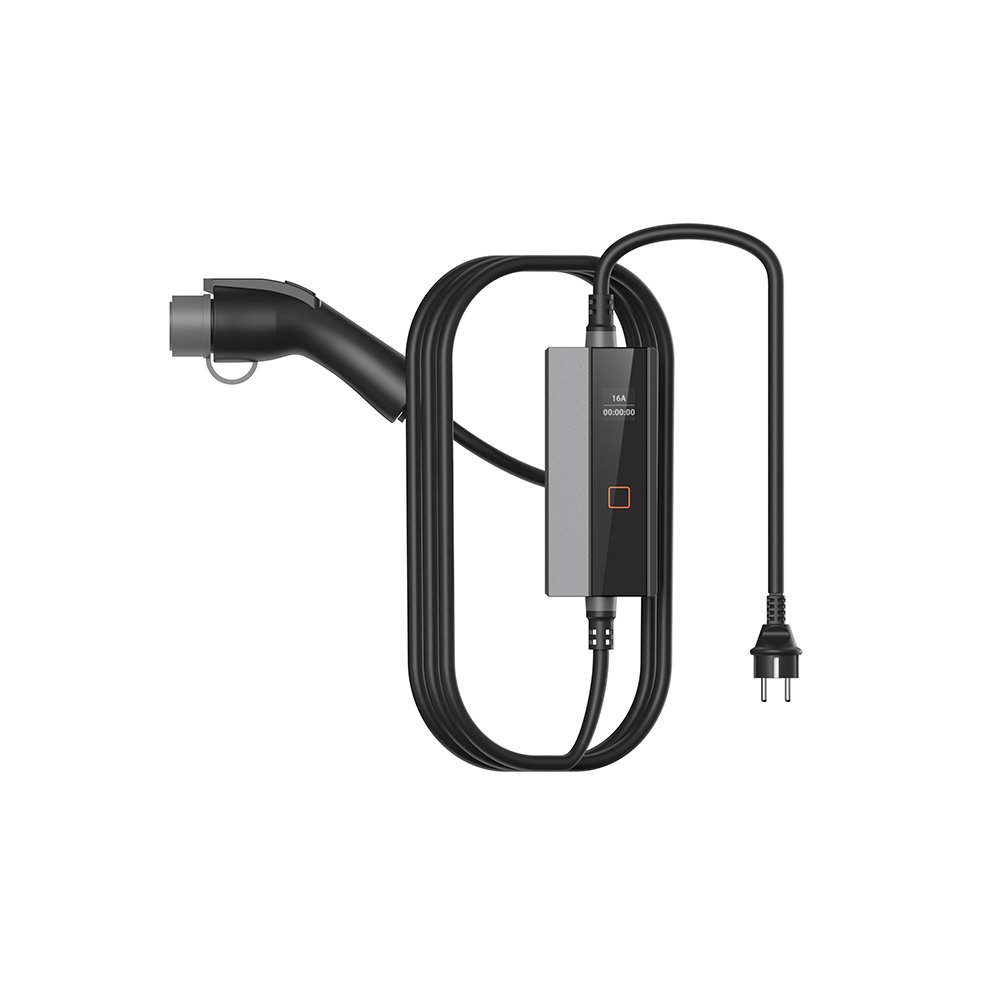

Mode2-EVSE-AC-Portable-Charger
S-Box series
S-Box series
Product advantage
High portability and flexibility
High Protection
High pressure housing
Four speed current free switching
Intelligent dualtemperature control function
Product advantage
High portability and flexibility
High Protection
High pressure housing
Four speed current free switching
Intelligent dualtemperature control function
Equipment parameter
|
Model 型号 |
S-Box 35 |
S-Box 07 |
|
Input&Output 输入&输出
| Rated Input Voltage 额定输入电压 | AC 230V | AC 230V |
Rated Input Frequency 额定输入频率 | 50Hz | 50Hz | |
Rated Output Voltage 额定输出电压 | AC 230V | AC 230V | |
Input Plug 输入插头 | 1P+N+PE 16A | 1P+N+PE 32A | |
Rated Output Frequency 额定输出频率 | 50Hz | 50Hz | |
Max. Output Current 最大输出电流 | 16A | 32A | |
Adjustable Current 可调电流 | 16A/13A/10A/8A | 32A/24A/16A/10A | |
Max. Output Power 最大输出功率 | 3.5KW | 7KW | |
Residual Current Detection 剩余电流检测装置 | AC 30 mA/+DC 6mA | AC 30 mA/+DC 6mA | |
Cable length 线缆长度 | 5m | 5m | |

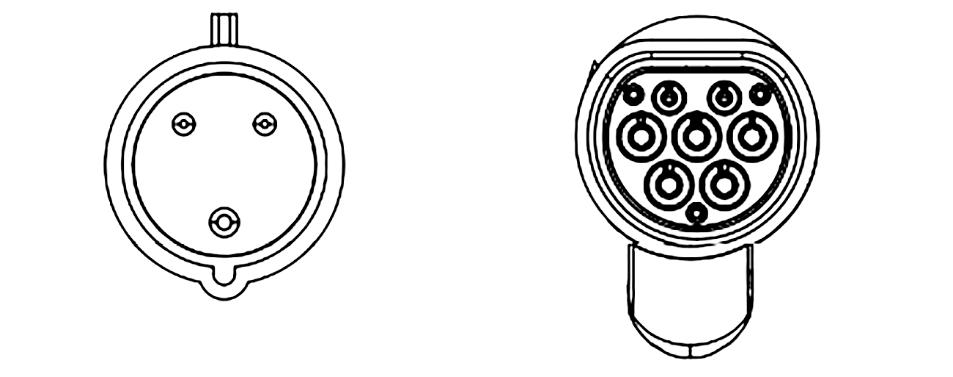

Connector Type (IEC62196-2) 接口类型 | Type 2 | Type 2 | |
User Interface & Control 用户界面和控制
| Screen 显示屏 | 1.54 inch | 1.54 inch |
Start method 启动方式 | Direct/Reservation | Direct/Reservation | |
Working Environment 工作环境
| Working temperature 工作温度 | -20℃-+50℃ | -20℃-+50℃ |
Storage temperature 储存温度 | -30℃-+85℃ | -30℃-+85℃ | |
Humidity 湿度 | 5%-95% | 5%-95% | |
Altitude 海拔高度 | ≤ 2000 m | ≤ 2000 m | |
IP 防护等级 | IP67 | IP67 | |
Safety 安全
| Mounting 安装方式 | IC-CPD | IC-CPD |
Size(H*W*D) 产品尺寸 | 224*90*48（mm） | 224*90*48（mm） | |
Over/Under Voltage 过压/欠压保护 | P | P | |
Over current 过流保护 | P | P | |
Over Temperature 过温保护 | P | P | |
Ground protection 接地保护 | P | P | |
Leakage protection 漏电保护 | P | P | |

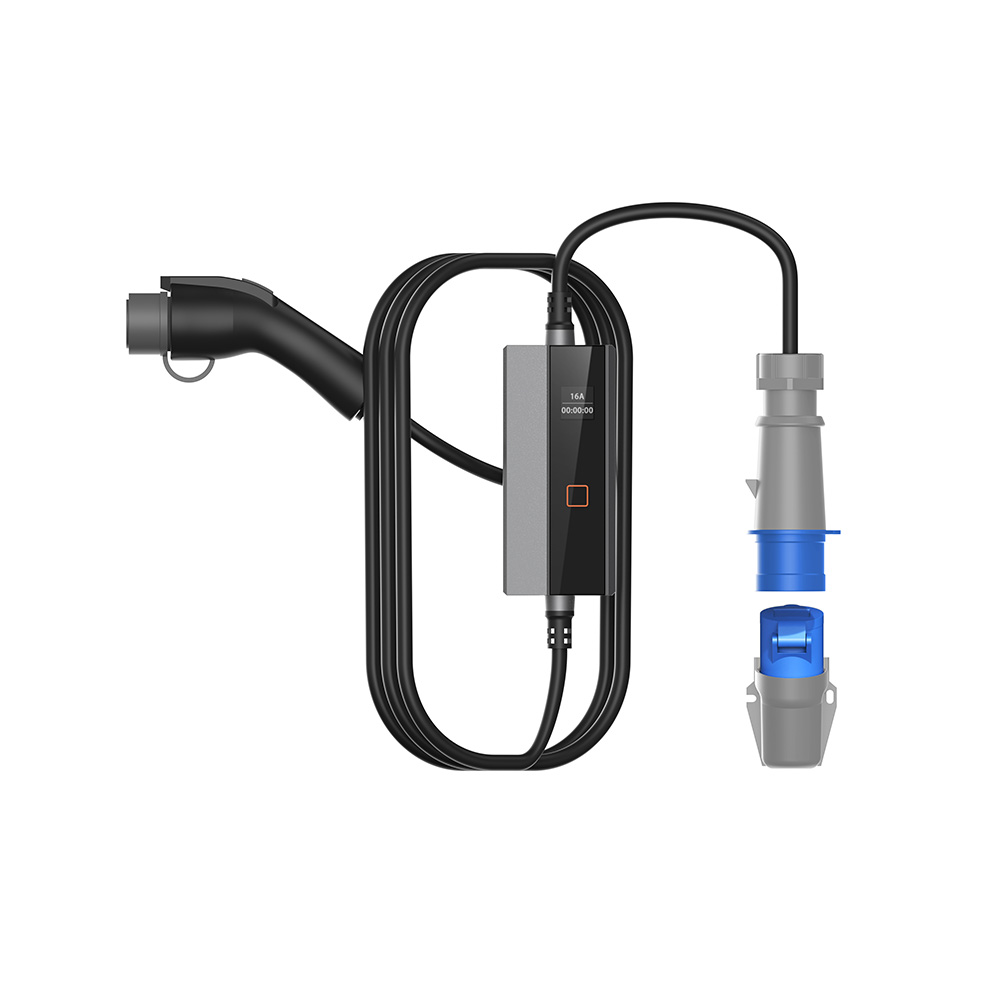

Adapter plug 适配插头 |
| ||
