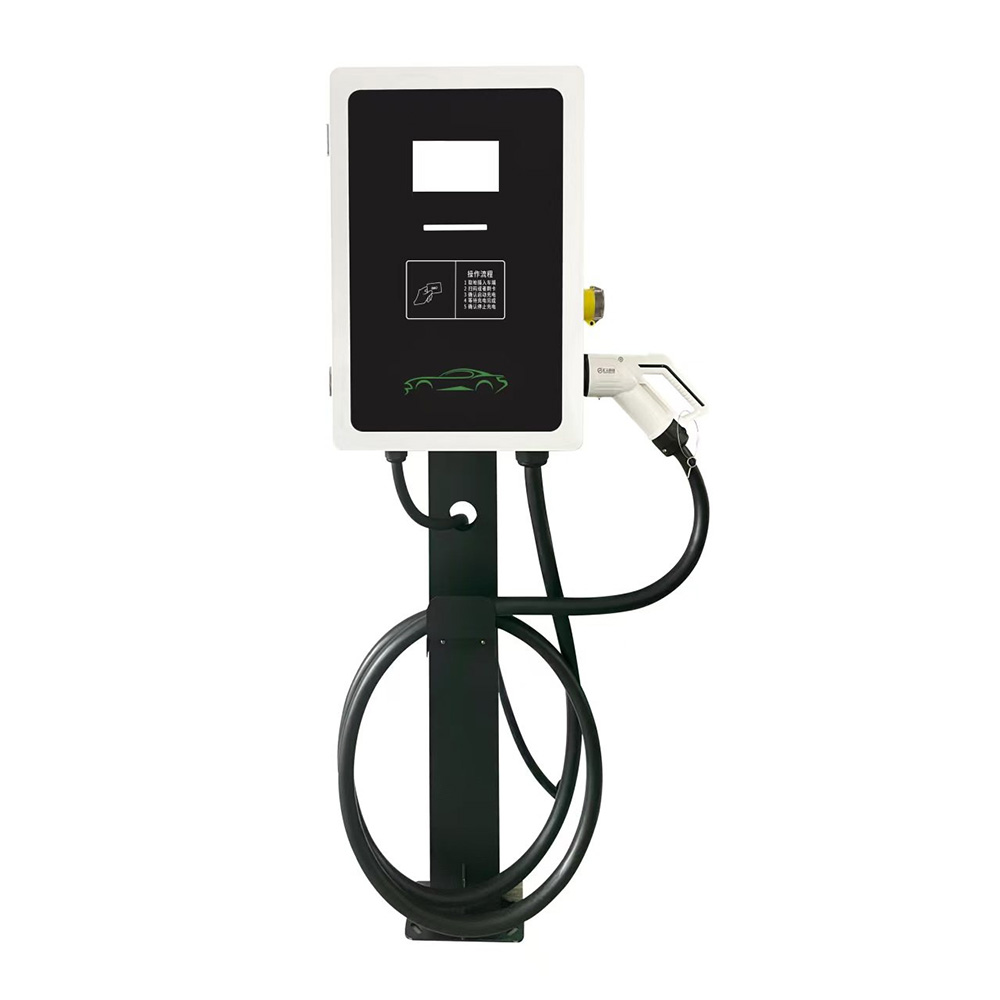

Mode4-EVSE-DC-Charger-Pile
FPG4-B2 series
FPG4-B2 series
Three power configurations are available: 20kw/30kw/40kw
Home or business
Wall hanging or column mounting
Line length customization
Multiple boot modes
Perfect security protection
Suitable for multiple scenarios
FPG4-B2 series
FPG4-B2 series
Product advantage
Passed CQC safety certification
Multiple protection
High temperature power failure
Suitable for 99.9% of models on the market
Waterproof and dustproof
Support Bluetooth reservation charging
Support 4G scanning code charges
Product advantage
Passed CQC safety certification
Multiple protection
High temperature power failure
Suitable for 99.9% of models on the market
Waterproof and dustproof
Support Bluetooth reservation charging
Support 4G scanning code charges
Equipment parameter

S/N

序号

Function Items

功能性项目

Parameter

参数

1

Model

型号

FPG4-B2-J20-7-4

FPG4-B2-J30-7-4

FPG4-B2-J40-7-4

2

Rated Power

额定功率

20KW

30KW

40KW

3

Man-Machine Interface

人机界面

7“ Touch Screen LCD

4

Installation Mode

安装方式

Wall Or Post Mounting

5

Routing Method

走线方式

Down In Down Out

6

Body Size(mm)

机身尺寸(mm)

650X460X222(WXHXD)

7

Outer Packaging Size(mm)

外包装尺寸(mm)

910X610X500

8

Net Weight

净重

43KG

45.5KG

48KG

9

Total Weight

总重量

47.24KG

49.74KG

52.24KG

10

Housing Material

外壳材质

Black Tempered Glass Panel Metal Material Body

11

Number Of Guns

枪数

Single Gun

12

Line Length

枪线长度

4m

13

Input Cable Specification

输入线规格

6mm²

10mm²

16mm²

14

Electric Energy Measurement

电能计量

Level 2.0

15

Voltage Regulation Accuracy

稳压精度

±0.5%

16

Current Regulation Accuracy

稳流精度

±1.0%

17

Pull-Out Force

拉拔力

45N~80N

18

Input Voltage

输入电压

AC 380V±20%

19

Input Frequency

输入频率

50Hz±10%

20

Output Voltage Range

输出电压范围

DC 50V~1000V

21

Output Current Range

输出电流范围

0~60A

0~100A

0~134A

22

Constant Power Output Voltage Range

恒定功率输出电压范围

DC 300~1000V

23

Starting Mode

启动方式

Password、Plug And Charge

24

Charging Mode

充电模式

Full Power Charge

25

Reference Standard

参考标准

GB/T 18487.1-2015

26

Insulation Voltage

绝缘电压

AC 2600V

27

Flame Retardant Rating

阻燃等级

UL94-V0

28

Class Of Protection

防护等级

IP54

29

Protection Function

保护功能

Short Circuit、Over Temperature、Over Current、Leakage、Under Voltage

30

Use Environment

使用环境

Indoor or Outdoor

31

Operation Temperature

工作温度

-20~+50

32

Relative Humidity

相对湿度

5%~95% No Condensation

33

Altitude

海拔高度

≤2000m

34

Cooling Mode

冷却方式

Air Cooling

35

Noise

噪音

65dB

36

MTBF

平均故障间隔时间

100000H
