Four power configurations are available: 3.5kw/7kw/11kw/22kw
Support home or business

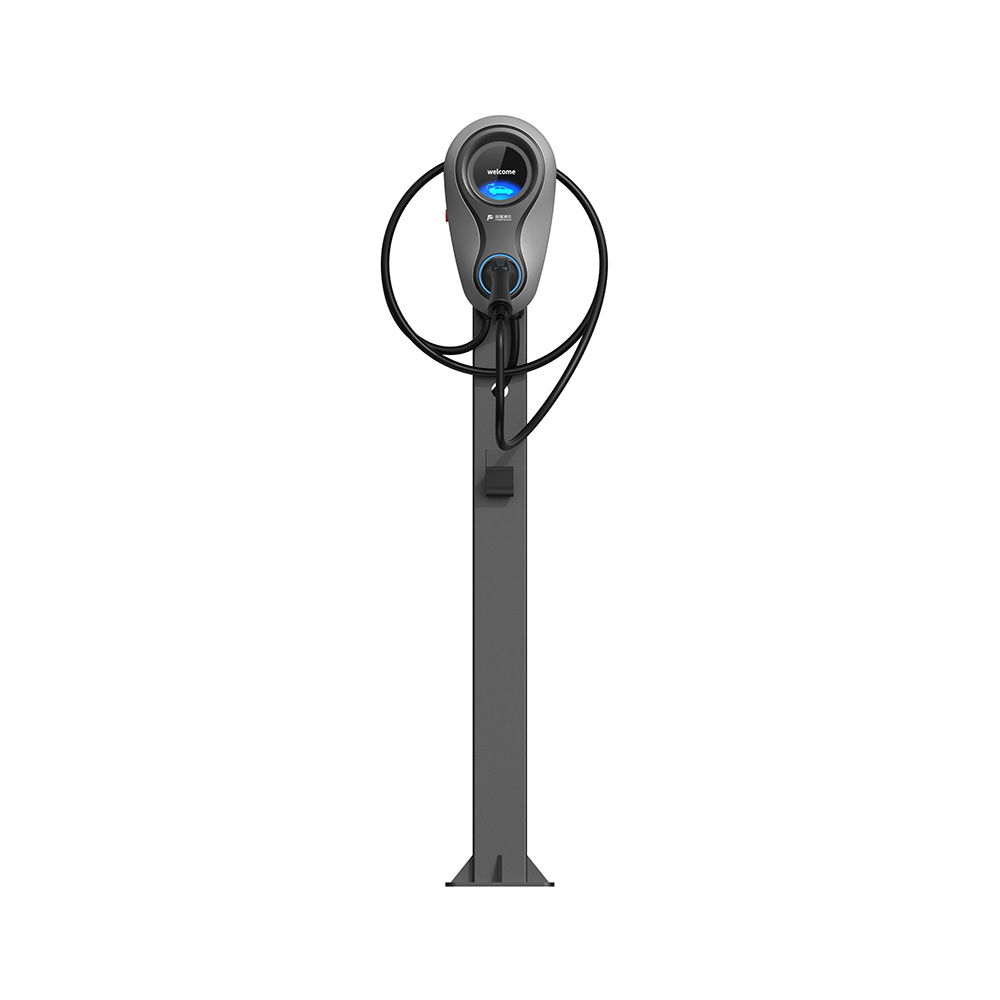

Supports wall hanging or column installation
Line length customization
Support color screen display and voice broadcast
Multiple protection
Suitable for a variety of locations
Mode3 EVSE AC Charger Pile
Elf Series
Elf Series
Product advantage
For charging electric vehicles with on-board chargers, mainly suitable for large and small electric vehicle charging stations; All kinds of public places with electric vehicle parking Spaces, such as urban residential areas, shopping plazas, electric power business places, etc.; High-speed service areas, stations, docks and other transportation hub areas.
Product advantage
For charging electric vehicles with on-board chargers, mainly suitable for large and small electric vehicle charging stations; All kinds of public places with electric vehicle parking Spaces, such as urban residential areas, shopping plazas, electric power business places, etc.; High-speed service areas, stations, docks and other transportation hub areas.
Equipment parameter
S/N | Functional Items 功能性项目 | Parameter 参数 | |||
Model 型号 | Elf 22 | Elf 11 | Elf 07 | Elf 35 | |
1 | Input Cable Structure 输入电缆结构 | 5x6mm²&1m | 5x2.5mm²&1m | 3x6mm²&1m | 3x2.5mm²&1m |
2 | Weight 重量 | 4.3kg | 3.8kg | 4.0kg | 3.5kg |
3 | Input Voltage 输入电压 | 400V±15% | 400V±15% | 230V±15% | 230V±15% |
4 | Output Voltage 输出电压 | 400V±15% | 400V±15% | 230V±15% | 230V±15% |
5 | Frequency 频率 | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
6 | Rated Output Current 额定输出电流 | 32A | 16A | 32A | 16A |
7 | Rated Output Power 额定输出功率 | 22KW | 11KW | 7KW | 3.5KW |
8 | Insulation Resistance 绝缘电阻 | DC 500V≥10MΩ | |||
9 | Dielectric Strength 介电强度 | DC 2800V≤10mA | |||
10 | Overcurrent Protection 过流保护 | 35.2A | 18A | 35.2A | 18A |
11 | Grounding Protection 接地保护 | √ | |||
12 | Adhesion Protection 附着力保护 | √ | |||
13 | Operating Temperature 工作温度 | -25℃~+50℃ | |||
14 | Storage Temperature 储存温度 | -40℃~+70℃ | |||
15 | Ambient Humidity 环境湿度 | ≤95% non-condensing | |||
16 | Protection Class 防护等级 | IP55 | |||
17 | Display Method 显示方法 | 2.5’’ LCD & LED Indicator Light | |||
18 | Start-Stop Charging 启停充电 | Instant Charging & Swipe Card Charging & App Charging | |||
19 | Charging Cable Length 充电电缆长度 | 5m | |||
20 | Installation Mode 安装方式 | Wall-Mounted or Column | |||
21 | Product Size 产品尺寸（mm） | 206X368X153（WXHXD） | |||
22 | Load Balancing（optional） 负载平衡 （选配） | Support Home DLB Function | |||
