Safe and reliable: with multiple protection functions, more stable charging
Wide adaptability: suitable for 99% of new national standard electric vehicles
Strong compatibility: compatible with a number of cloud platforms, fast access to operation, support a number of mainstream charging modules
Widely used: suitable for residential areas, office buildings, shopping malls, hotels and other parking lot use
No need for debugging: debugging has been completed before the factory, power can be used directly
High efficiency output: voltage range 200-1000V, constant power range 300-1000V

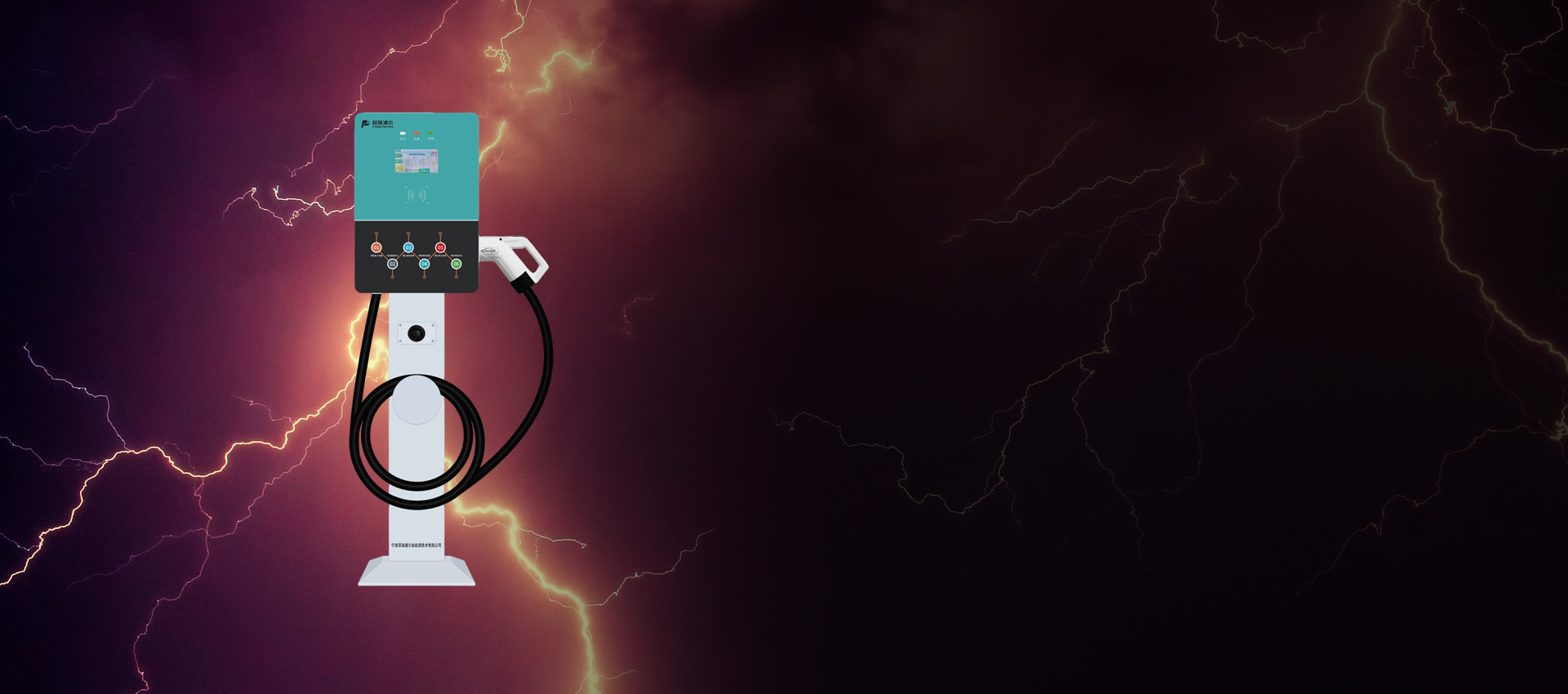

Mode4-EVSE-DC-Charger-Pile
FPDC-L series
FPDC-L series
Product advantage
Product advantage
Equipment parameter
S/N 序号 | Function Items 功能性项目 | Parameter 参数 | |||
1 | Model 型号 | FPDC20K-L | FPDC30K-L | FPDC40K-L | |
2 | Rated Power 额定功率 | 20KW | 30KW | 40KW | |
3 | Max. Output Current Of A Single Gun 单枪最大输出电流 | 67A | 100A | 125A | |
4 | Weight 重量 | ≈45kg | ≈62kg | ≈66kg | |
5 | Design Criteria 设计标准 | GB/T 18487-2015 | |||
6 | Number Of Guns 枪数 | Single Gun | |||
7 | Body Size（mm） 机身尺寸（mm） | 450X650X216（WXHXD） | 580X780X206（WXHXD） | ||
8 | Man-Machine Interface 人机界面 | 7“ Touch Screen LCD | |||
9 | Networking Mode 联网方式 | Ethernet、4G(optional) | |||
10 | Charging Mode 充电模式 | Automatic Charging、By Time、By Power、By Amount | |||
11 | Starting Mode 启动方式 | Swipe Card、Wechat Scan Code、VIN、Password | |||
12 | Cloud Platform 云平台 | Cloud Fast Charging、Weijing Cloud、DAK Cloud、E-Charging | |||
13 | Protection Function 保护功能 | Short Circuit、Over Current 、Over Temperature、Leakage、Under Voltage、Over Voltage | |||
14 | Input Voltage 输入电压 | AC 380V±20% | |||
15 | Input Frequency 输入频率 | 50Hz±10% | |||
16 | Line Length 枪线长度 | 5m | |||
17 | Output Voltage Range 输出电压范围 | DC 200~1000V | |||
18 | Output Voltage Tolerance 输出电压误差 | ≤±0.5% | |||
19 | Output Current Tolerance 输出电流误差 | ≤±1.0% | |||
20 | Voltage Regulation Accuracy 稳压精度 | ≤±0.5% | |||
21 | Current Regulation Accuracy 稳流精度 | ≤±1.0% | |||
22 | Harmonic Content 谐波含量 | ≤5% | |||
23 | Power Factor 功率因数 | ≥0.99 | |||
24 | Max, Efficiency 最高效率 | ≥95% | |||
25 | Measurement Accuracy 计量精度 | Level 1.0 | |||
26 | Insulation Resistance 绝缘电阻 | ≥20MΩ | |||
27 | Noise 噪音 | ≤60dB | |||
28 | Class Of Protection 防护等级 | IP54 | |||
29 | Use Environment 使用环境 | Indoor or Outdoor | |||
30 | Cooling Mode 冷却方式 | Air Cooling | |||
31 | Operation Temperature 运行温度 | -20℃~+50℃（Derated above 50℃） | |||
32 | Storage Temperature 存储温度 | -40℃~+70℃ | |||
33 | Relative Humidity 相对湿度 | 5%~95% No Condensation | |||
34 | Altitude 海拔高度 | ≤2000m | |||
35 | Installation Mode 安装方式 | Wall-Mount or Column Mount | |||
