S/N 序号 | Function Items 功能性项目 | Parameter 参数 | |||||

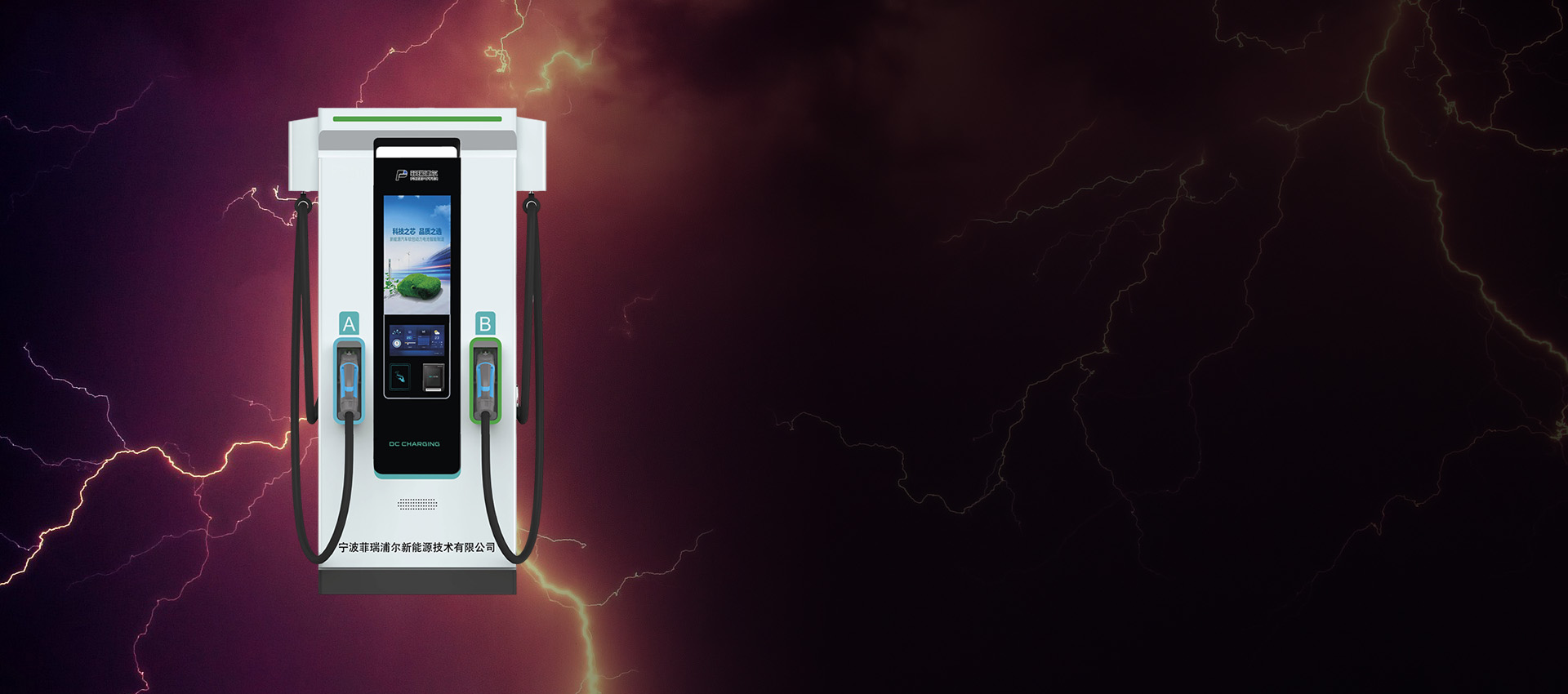

1 | Model 型号 | FPDC60K-YJ-EU | FPDC80K-YJ-EU | FPDC120K-YJ-EU | FPDC160K-YJ-EU | ||
2 | Power Supply 供电电源 | 3P+N+PE | |||||
3 | Input Voltage 输入电压 | AC 400V±15% | |||||
4 | Input Frequency 输入频率 | 50/60 Hz | |||||
5 | Input Power Factor 输入功率因素 | ≥0.98 | |||||
6 | Input Current Harmonics 输入电流谐波 | ≤5%（50%~100% load） | |||||
7 | Rated Power 额定功率 | 60KW | 80KW | 120KW | 160KW | ||
8 | Rated Current 额定电流 | 60A | 80A | 120A | 160A | ||
9 | Rated Voltage 额定电压 | DC 1000V | |||||
10 | Voltage Range 电压范围 | DC 150~1000V | |||||
11 | Constant Power Voltage Output Range 恒定功率电压输出范围 | DC 300~1000V | |||||
12 | Current Range/Gun 电流范围/枪 | 0~200A | |||||
13 | Max. Efficiency 最大效率 | ≥95%（100% Load） | |||||
14 | Current Regulation Accuracy 稳流精度 | ≤±1% | |||||
15 | Voltage Regulation Accuracy 稳压精度 | ≤±0.5% | |||||
16 | LED Indicator LED指示灯 | LED（Green、Blue、Red） | |||||
17 | LCD Display LCD显示屏 | 10.1‘’ Touch LCD Display | |||||
18 | Starting Mode 启动模式 | POS、Swipe IC Card、Plug And Play、APP | |||||
19 | Line Length 线长 | 5m | |||||
20 | Number Of Guns 枪数 | Double Gun | |||||
21 | Networking Mode 联网方式 | Ethernet、4G | |||||
22 | Agreement 协议 | OCPP 1.6J | |||||
23 | Design Standard 设计标准 | IEC 61851-1:2017、IEC 61851-23:2014、EN 61851-24:2014、EN 61851-21-1:2018 | |||||
24 | Protection Function 保护功能 | Short Circuit、Over Load、Over Temperature、Over Current、Leakage、Over Voltage、Under Voltage | |||||
25 | Operation Temperature 工作温度 | -30℃~+55℃ | |||||
26 | Storage Temperature 储存温度 | -40℃~+70℃ | |||||
27 | Relative Humidity 相对湿度 | 5%~95% No Condensation | |||||
28 | Altitude 海拔高度 | ≤2000m | |||||
29 | Use Environment 使用环境 | Indoor or Outdoor | |||||
30 | Cooling Mode 冷却方式 | Air Cooling | |||||
31 | Noise 噪音 | ≤65dB | |||||
32 | Class Of Protection 防护等级 | IP54 | |||||
33 | Installation Mode 安装方式 | Floor Mount | |||||
34 | Product Size（mm） 产品尺寸（mm） | 1960X1040X500（HXWXD） | |||||
35 | Net Weight 净重 | 327KG | 368KG | ||||
36 | Package 包装 | Wooden Box | |||||
