Waterproof and dustproof
carry-on
High temperature failure protection
Bluetooth reservation charging
Authoritative certification
Suitable for 99.9% of vehicles
Lifetime technical service

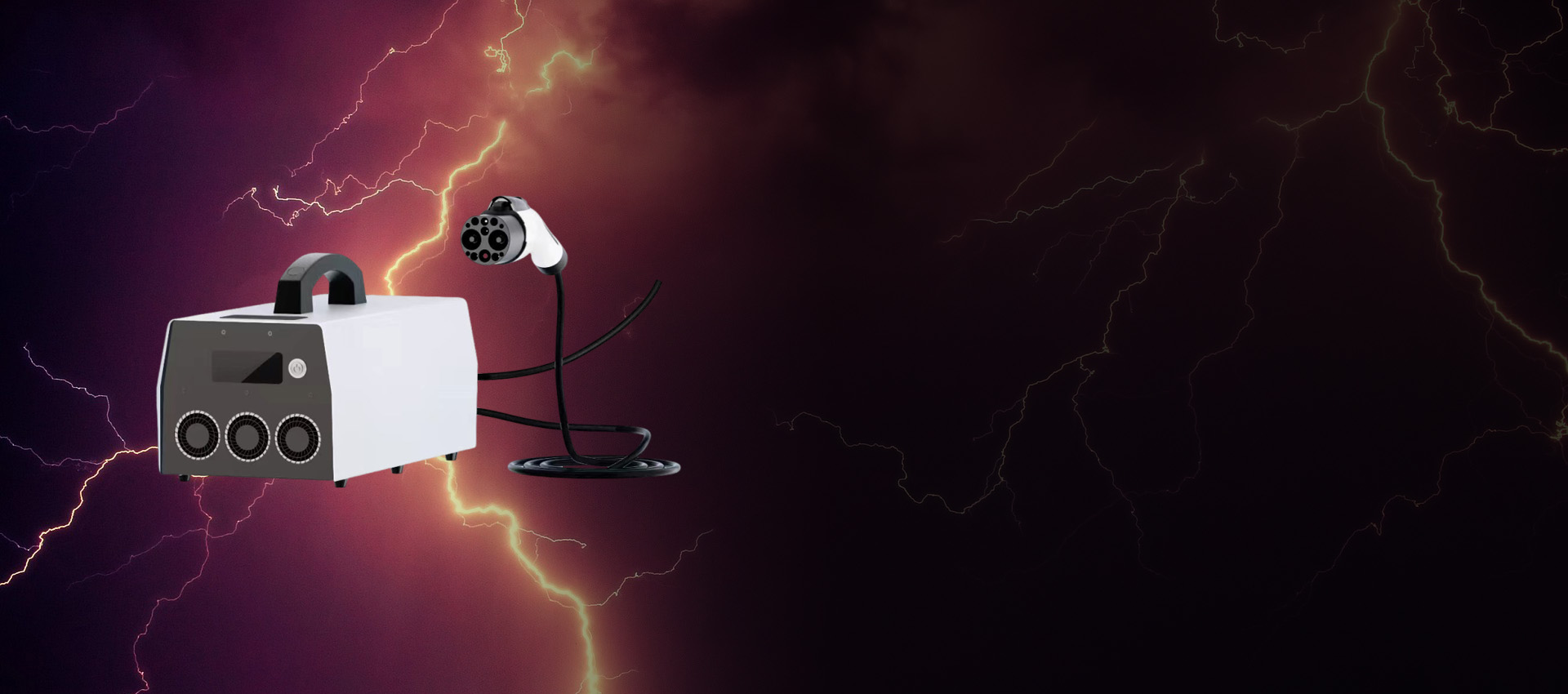

Mode4-EVSE-DC-Charger-Pile
FP-GZ-7BX series
FP-GZ-7BX series
Product advantage
Passed CQC safety certification
Multiple protection
High temperature power failure
Suitable for 99.9% of models on the market
Waterproof and dustproof
Support Bluetooth reservation charging
Support 4G scanning code charges
Multiple protection
High temperature power failure
Suitable for 99.9% of models on the market
Waterproof and dustproof
Support Bluetooth reservation charging
Support 4G scanning code charges
Product advantage
Passed CQC safety certification
Multiple protection
High temperature power failure
Suitable for 99.9% of models on the market
Waterproof and dustproof
Support Bluetooth reservation charging
Support 4G scanning code charges
Multiple protection
High temperature power failure
Suitable for 99.9% of models on the market
Waterproof and dustproof
Support Bluetooth reservation charging
Support 4G scanning code charges
Equipment parameter
S/N 序号 | Function Items 功能性项目 | Parameter 参数 |
1 | Model 型号 | FP-GZ-7BX |
2 | Input Voltage Range 输入电压范围 | AC 85V~265V，Typical AC 220V |
3 | Input Frequency Range 输入频率范围 | 47Hz~63Hz，Typical 50Hz |
4 | Output Power Range 输出功率范围 | 0~6600W |
5 | Output Voltage Range 输出电压范围 | DC 200V~580V |
6 | Constant Power Voltage Range 恒定功率电压范围 | DC 330V~580V |
7 | Output Current Range 输出电流范围 | 0~20A |
8 | Power Factor 功率因数 | ≥0.99 |
9 | Peak Efficiency 峰值效率 | ≥95% |
10 | Reference Standards 参考标准 | GB/T 20234.1-2015，GB/T 20234.3-2015，GB/T 27930-2015，GB/T 18487.1-2015，NB/T 3300-2018 |
11 | Starting Mode 启动方式 | One-Button Start And Stop；BT Appointment Start |
12 | Protection Function 保护功能 | Over Voltage、Under Voltage、Over Load、Short Circuit、Over Current 、Over Temperature、Leakage、Lighting |
13 | Noise 噪音 | ≤60dB |
14 | Cooling Mode 冷却方式 | Forced Air Cooling |
15 | Class Of Protection 防护等级 | IP32 |
16 | Operation Temperature 工作温度 | -30℃~+50℃（Intelligent Over Temperature Protection） |
17 | Relative Humidity 相对湿度 | 5%~95% |
18 | Altitude 海拔高度 | ≤2000m |
19 | Atmospheric Pressure 大气压力 | 70KPa~106Kpa |
20 | Applicable Environment 适用环境 | Indoor or Places Without Rain |
21 | Product Size（mm） 产品尺寸（mm） | 425X225X185 |
22 | Package Size (mm) 包装尺寸（mm） | 520X420X270 |
23 | Equipment Weight 设备重量 | ≈12.2kg |
24 | Outer Packaging Gross Weight 外箱毛重 | ≈13.4kg |
25 | Line Length 枪线长度 | 3m |
26 | Input Line Length 进线长度 | 2m |
