Safe and reliable: through CQC, Cape certification, with multiple protection functions, more stable charging
Wide adaptability: The new national standard compatible design, to meet the charging needs of different models, suitable for 99% of the market national standard electric vehicles
Strong compatibility: compatible with multiple platforms, can be directly connected to Wejingyun, cloud fast charge and other platforms, compatible with multi-brand charging modules
No debugging: before the factory debugging is completed, power directly used, no secondary debugging
Widely used: suitable for bus stations, logistics parks, social stations and other centralized charging station places
Efficient output: 40KW fast charging, power factor up to 99%

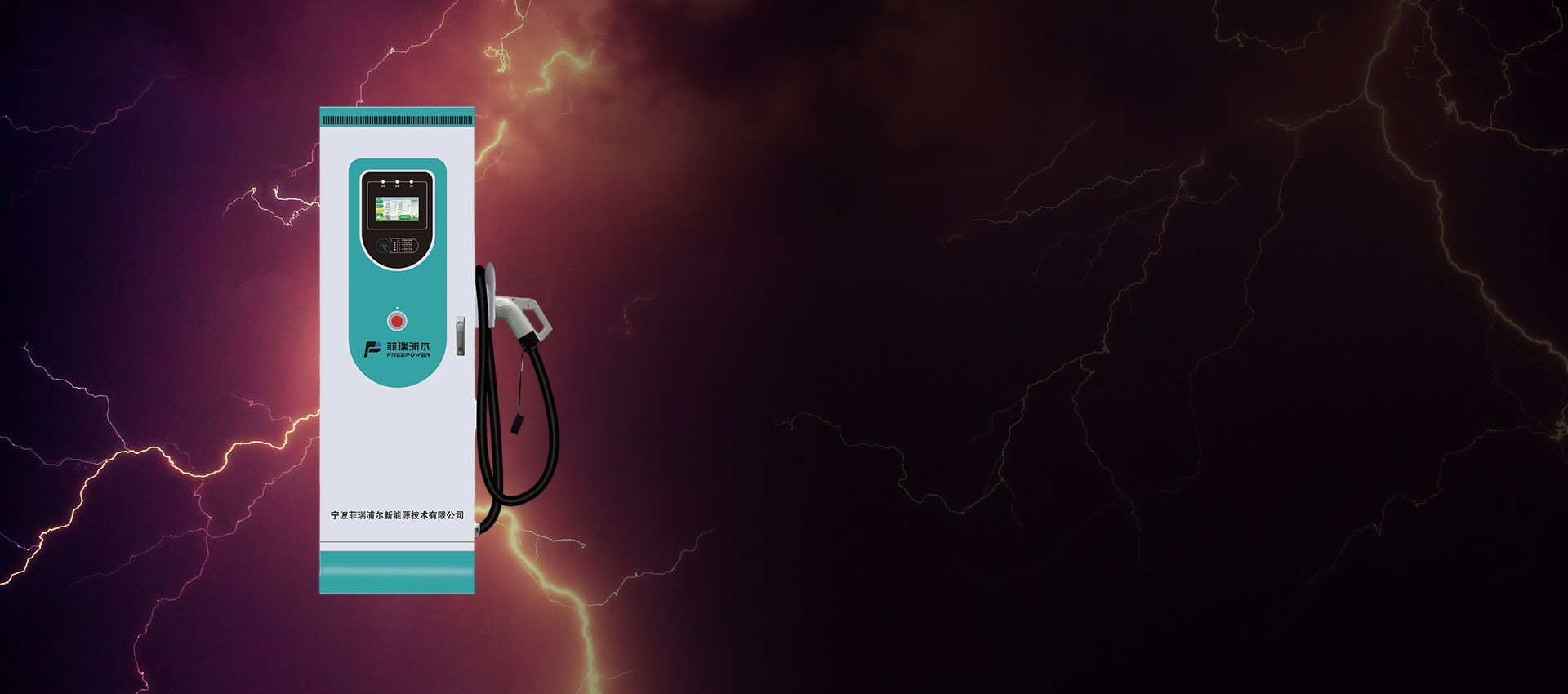

Mode4-EVSE-DC-Charger-Pile
FPDC-S series
FPDC-S series
Product advantage
Product advantage
Equipment parameter
S/N 序号 | Function Items 功能性项目 | Parameter 参数 | |||
1 | Model 型号 | FPDC30K-S | FPDC40K-S | ||
2 | Rated Power 额定功率 | 30KW | 40KW | ||
3 | Number Of Guns 枪数 | Single Gun | Double Gun | Single Gun | Double Gun |
4 | Max. Output Current Of A Single Gun 单枪最大输出电流 | 100A | 50A | 125A | |
5 | Weight 重量 | ≈95kg | ≈118kg | ≈101kg | ≈118kg |
6 | Design Criteria 设计标准 | GB/T 18487、GB/T 20234 | |||
7 | Body Size（mm） 机身尺寸（mm） | 550X1624X195（WXHXD） | |||
8 | Man-Machine Interface 人机界面 | 7“ LCD+LED | |||
9 | Networking Mode 联网方式 | Ethernet、4G(optional) | |||
10 | Charging Mode 充电模式 | Automatic Charging、By Time、By Power、By Amount | |||
11 | Starting Mode 启动方式 | Swipe Card、Wechat Scan Code、VIN、Password | |||
12 | Protection Function 保护功能 | Short Circuit、Over Temperature、Over Current、Leakage、Under Voltage | |||
13 | Charging Mode 充电模式 | Full Power Charge | |||
14 | Cloud Platform 云平台 | Cloud Fast Charging、Weijing Cloud、DAK Cloud、E-Charging | |||
15 | Input Voltage 输入电压 | AC 380V±20% | |||
16 | Input Frequency 输入频率 | 50Hz±10% | |||
17 | Output Voltage Range 输出电压范围 | DC 150~750V/1000V Continuously Adjustable | |||
18 | Line Length 枪线长度 | 5m | |||
19 | Output Voltage Tolerance 输出电压误差 | ≤±0.5% | |||
20 | Output Current Tolerance 输出电流误差 | ≤±1.0% | |||
21 | Voltage Regulation Accuracy 稳压精度 | ≤±0.5% | |||
22 | Current Regulation Accuracy 稳流精度 | ≤±1.0% | |||
23 | Harmonic Content 谐波含量 | ≤5% | |||
24 | Power Factor 功率因数 | ≥0.99（Over 50% Load） | |||
25 | Max, Efficiency 最高效率 | ≥95% | |||
26 | Electric Energy Measurement 电能计量 | Level 1.0 | |||
27 | Insulation Resistance 绝缘电阻 | ≥20MΩ | |||
28 | Noise 噪音 | ≤65dB | |||
29 | Class Of Protection 防护等级 | IP54 | |||
30 | Use Environment 使用环境 | Indoor or Outdoor | |||
31 | Cooling Mode 冷却方式 | Air Cooling | |||
32 | Operation Temperature 运行温度 | -20℃~+50℃ | |||
33 | Storage Temperature 储存温度 | -40℃~+70℃ | |||
34 | Relative Humidity 相对湿度 | 5%~95% No Condensation | |||
35 | Altitude 海拔高度 | ≤2000m | |||
36 | Installation Mode 安装方式 | Floor Mount | |||
