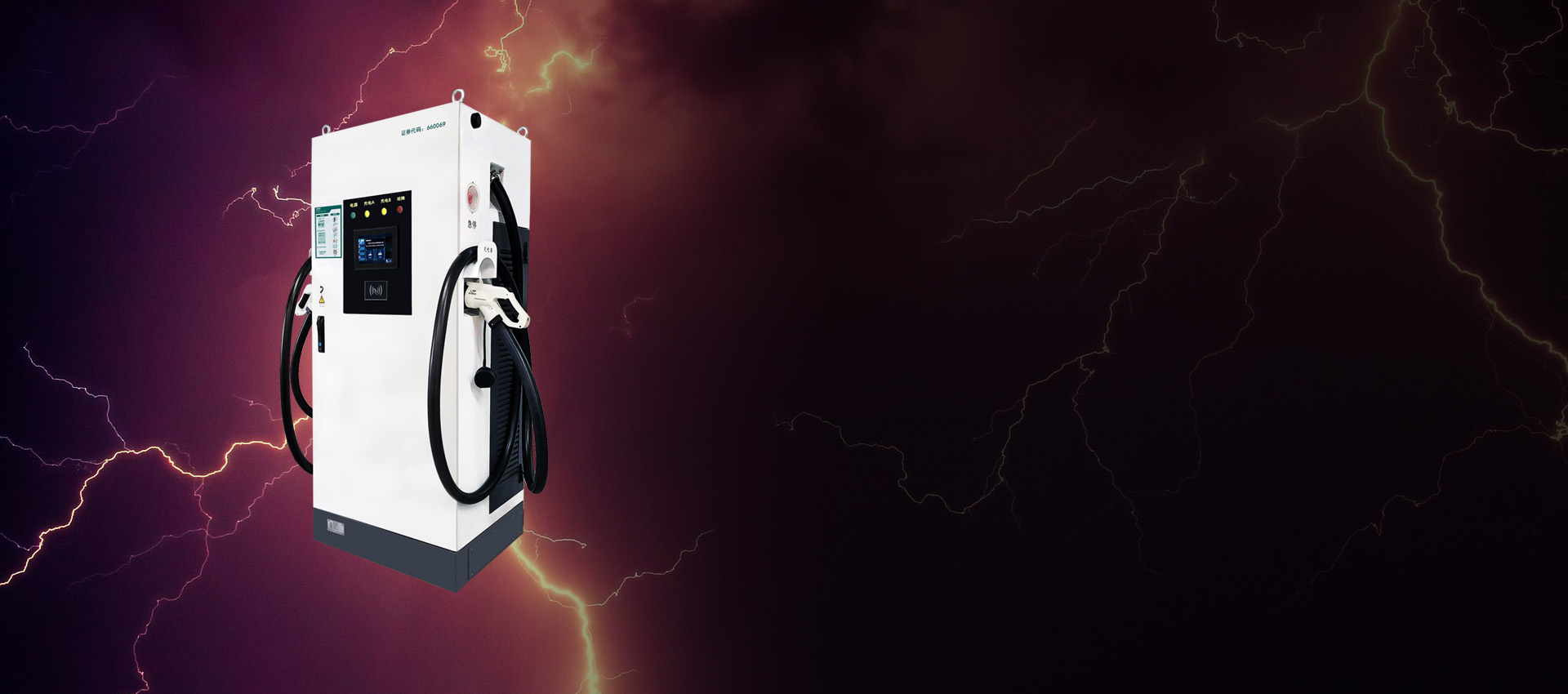

Mode4-EVSE-DC-Charger-Pile

FPDCO Series

Energy saving and high efficiency: Wide output voltage range, high output efficiency, low standby power consumption, reducing operating costs

Safe and reliable: with short-circuit, overheating, emergency stop and other multiple protection functions; Galvanized steel plate + anti-rust spraying double shell protection design; IP54 protection grade; Unique air duct design, low failure rate.

Intelligent interaction: 7 inch color touch screen, easy to operate; Ethernet, 4G various communication methods; Code scanning, card swiping, VIN multiple starting modes; Automatic charging, charging according to the power and other charging modes

Product advantage

Energy efficient:
Wide output voltage range, high output efficiency, low standby power consumption, reduce operating costs.
Safe and reliable:
With short-circuit, overheating, emergency stop and other multiple protection functions; Galvanized steel plate + anti-rust spraying double shell protection design; IP54 protection grade; Unique air duct design, low failure rate.
Intelligent interaction:
7 inch color touch screen, easy to operate; Ethernet, 4G various communication methods; Code scanning, card swiping, VIN multiple starting modes; Automatic charging, charging according to the power and other charging modes.

Product advantage

S/N 序号	Function Items 功能性项目	Parameter 参数
1	Model 型号	FPDCO-40KW-2	FPDCO-60KW-2	FPDCO-80KW-2	FPDCO-120KW-2
2	Design Criteria 设计标准	GB/T 18487、IEC 61851
3	Input Voltage 输入电压	AC 380V±15%
4	Frequency Range 频率范围	45Hz~66Hz
5	Power Factor 功率因数	≥0.99
6	Harmonic Content 谐波含量	≤5%
7	Max, Efficiency 最高效率	≥96%
8	Output Voltage Range 输出电压范围	DC 200~1000V
9	Constant Power Output Voltage Range 恒定功率输出电压范围	DC 300~1000V
10	Output Power 输出功率	40KW	60KW	80KW	120KW
11	Max. Output Current 最大输出电流	80A	120A	160A	240A
12	Number Of Guns 枪数	Double Gun
13	Line Length 充电线长	5m
14	Current Regulation Accuracy 稳流精度	≤±1.0%
15	Voltage Regulation Accuracy 稳压精度	≤±0.5%
16	Output Current Tolerance 输出电流误差	≤±1.0%
17	Output Voltage Tolerance 输出电压误差	≤±0.5%
18	Degree Of Unbalance 均流不平衡度	≤±0.5%
19	Communication Mode 通讯方式	OCPP1.6J
20	Heat Dissipation Control 散热控制	Air Cooling
21	Class Of Protection 防护等级	IP54
22	BMS Auxiliary Power Supply 辅助电源	12V/24V
23	Reliability 可靠性	50000
24	Dimension（WXDXH）尺寸（mm）	650X425X1400		720X580X1700
25	Routing Mode 走线方式	Down Line
26	Operation Temperature 工作温度	-20℃~+50℃
27	Storage Temperature 储存温度	-20℃~+70℃
28	Optional 选配项	Cable Length 8m/10m
