Safe and reliable: with multiple protection functions, more stable charging
Elegant design: pluggable integrated module design, support voice control, high-definition screen interaction
Smart and convenient: a new generation of charging gun, 59 seconds quick change of gun head, support LAN/4G/OCPP1.6J, rapid intervention operation platform
Fireproof and dustproof: polymer fireproof fiber cotton, effectively enhance the dustproof effect
Reduce noise: The S-shaped air duct effectively reduces noise by 20%
Efficient output: Fast charging, power factor up to 99%, wide output voltage range

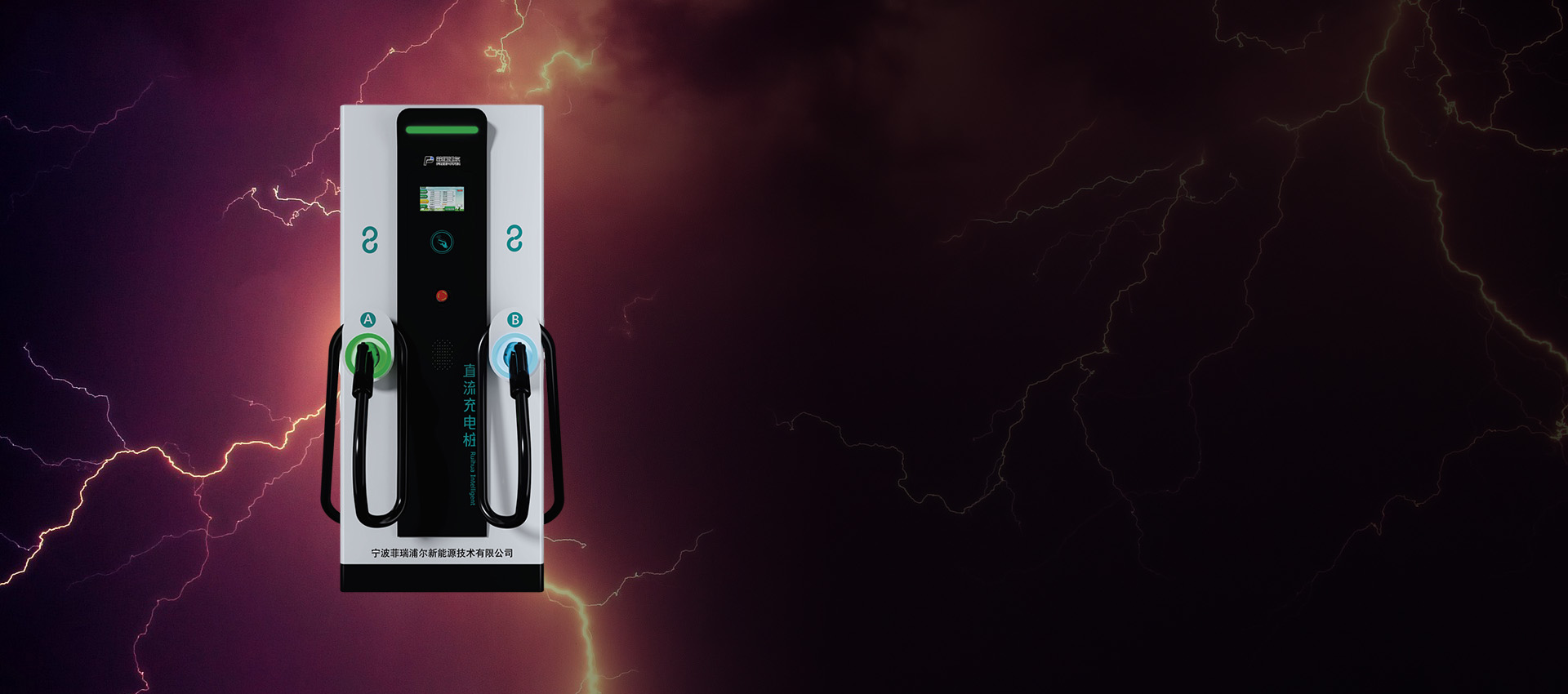

Mode4-EVSE-DC-Charger-Pile
FPDC-YJS series
FPDC-YJS series
Product advantage
Product advantage
Equipment parameter
S/N 序号 | Function Items 功能性项目 | Parameter 参数 | ||
1 | Model 型号 | FPDC80K-YJS | FPDC120K-YJS | FPDC160K-YJS |
2 | Rated Power 额定功率 | 80KW | 120KW | 160KW |
3 | Weight 重量 | ≈249kg | ≈273kg | ≈300kg |
4 | Max. Output Current Of A Single Gun 单枪最大输出电流 | 250A | ||
5 | Design Criteria 设计标准 | GB/T 18487-2015 | ||
6 | Input Voltage 输入电压 | AC 380V±20% | ||
7 | Number Of Guns 枪数 | Double Gun | ||
8 | Line Length 枪线长度 | 5m Optional | ||
9 | Input Frequency 输入频率 | 50Hz±10% | ||
10 | Output Voltage Range 输出电压范围 | DC 200~1000V | ||
11 | Constant Power Output Voltage Range 恒定功率输出电压范围 | DC 300~1000V | ||
12 | Output Current Range 输出电流范围 | 8~250A | ||
13 | Output Voltage Tolerance 输出电压误差 | ≤±0.5% | ||
14 | Output Current Tolerance 输出电流误差 | Output Current≥30A：≤±1.0% Output Current＜30A：≤±0.3% | ||
15 | Voltage Regulation Accuracy 稳压精度 | ≤±0.5% | ||
16 | Current Regulation Accuracy 稳流精度 | ≤±1.0% | ||
17 | Ripple Coefficient 纹波系数 | ≤0.5% | ||
18 | Max, Efficiency 最高效率 | ≥95% | ||
19 | Power Factor 功率因数 | ≥0.99（Over 50% Load） | ||
20 | Power frequency withstand voltage 工频耐压 | AC 2500V No Insulation Breakdown and Flashover | ||
21 | Leakage Current 漏电流 | ≤10mA | ||
22 | Insulation Resistance 绝缘电阻 | ≥20MΩ Test Voltage DC 1000V | ||
23 | Noise 噪音 | ≤60dB | ||
24 | Class Of Protection 防护等级 | IP54 | ||
25 | Use Environment 使用环境 | Indoor or Outdoor | ||
26 | Cooling Mode 冷却方式 | Air Cooling | ||
27 | Installation Mode 安装方式 | Floor Mount | ||
28 | Auxiliary Power Supply 辅助电源 | DC 12V | ||
29 | Networking Mode 联网方式 | Ethernet、4G(optional) | ||
30 | Man-Machine Interface 人机界面 | 7“ Color Touch Screen LCD+LED | ||
31 | Cloud Platform 云平台 | Cloud Fast Charging、Weijing Cloud、DAK Cloud、E-Charging | ||
32 | Measurement Accuracy 计量精度 | Level 1.0 | ||
33 | Operation Temperature 运行温度 | -20℃~+50℃（Derated above 50℃） | ||
34 | Storage Temperature 存储温度 | -40℃~+70℃ | ||
35 | Relative Humidity 相对湿度 | 5%~95% No Condensation | ||
36 | Altitude 海拔高度 | ≤2000m | ||
37 | Overall Size（mm） 外形尺寸（mm） | 730X560X1730（WXDXH） | ||
